DescriptionSpecificationsOTHER OPERATION
- a. External & Internal Temp Check: Long press the“ M”and“ <”to switch the internal temp or the external temp.
- b. Temp Protection Warning: When the temp is higher or lower the protection value,“ fire”will flash,the valve will auto close or open, and adjust the temp to 2℃ higher or 2℃ lower of the protection value,“ fire"will stop flash and the protection mode cancel.
- c. ERR Exception ：When the“ ERR” light up, it means the sensor mode was wrong or the sensor was broken. And the temp value in the screen will show "--".
- d. “WIFI ”flash slowly, it means the WiFi connect is failed.
- e. There have the Anti-locking Function.
- f. Check the MAC Address: When the thermostat is power off, and long press the “< ”and “ >”,enter the checking mode, and press “ <”or “ >”to select the address.

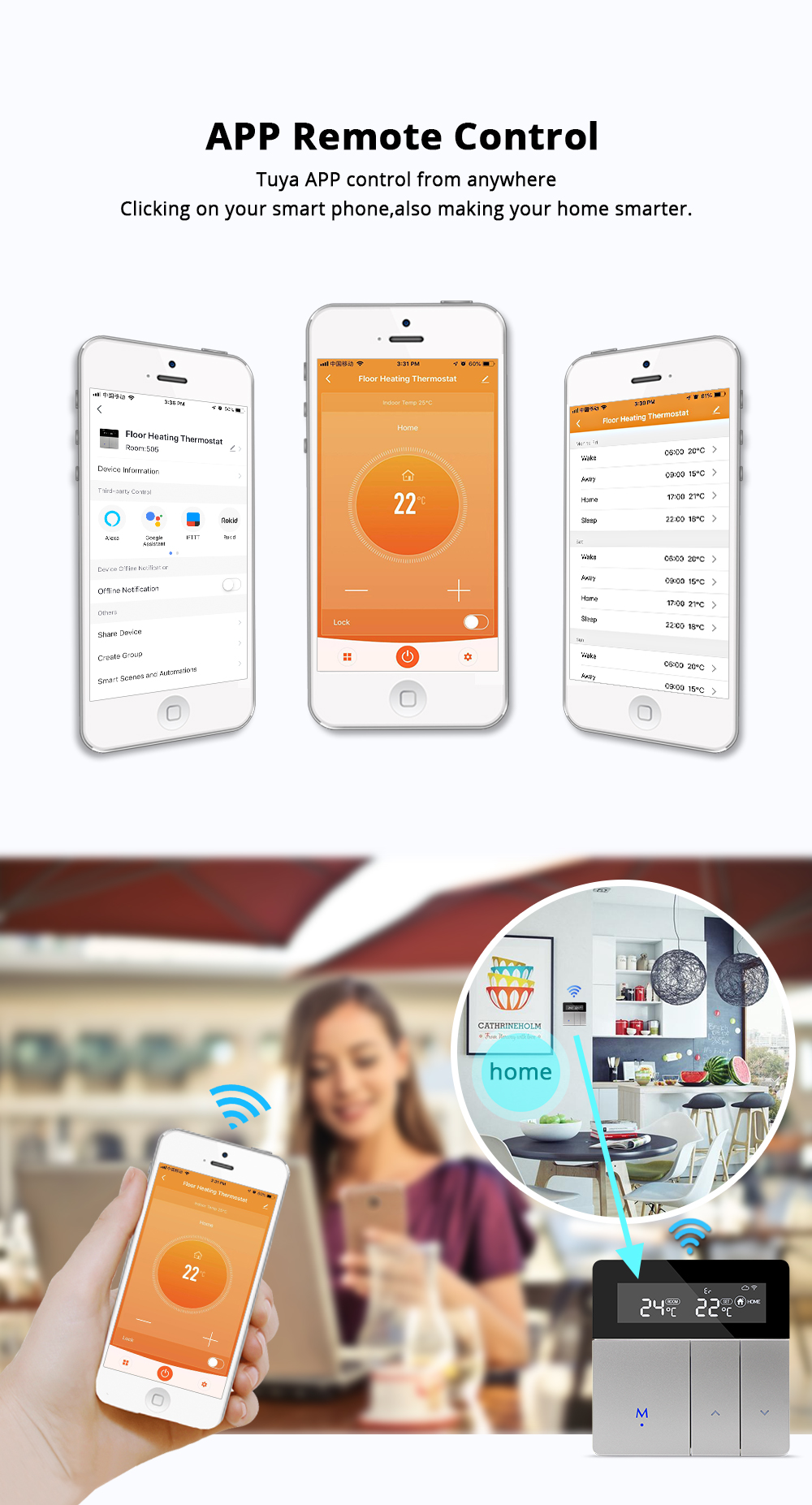

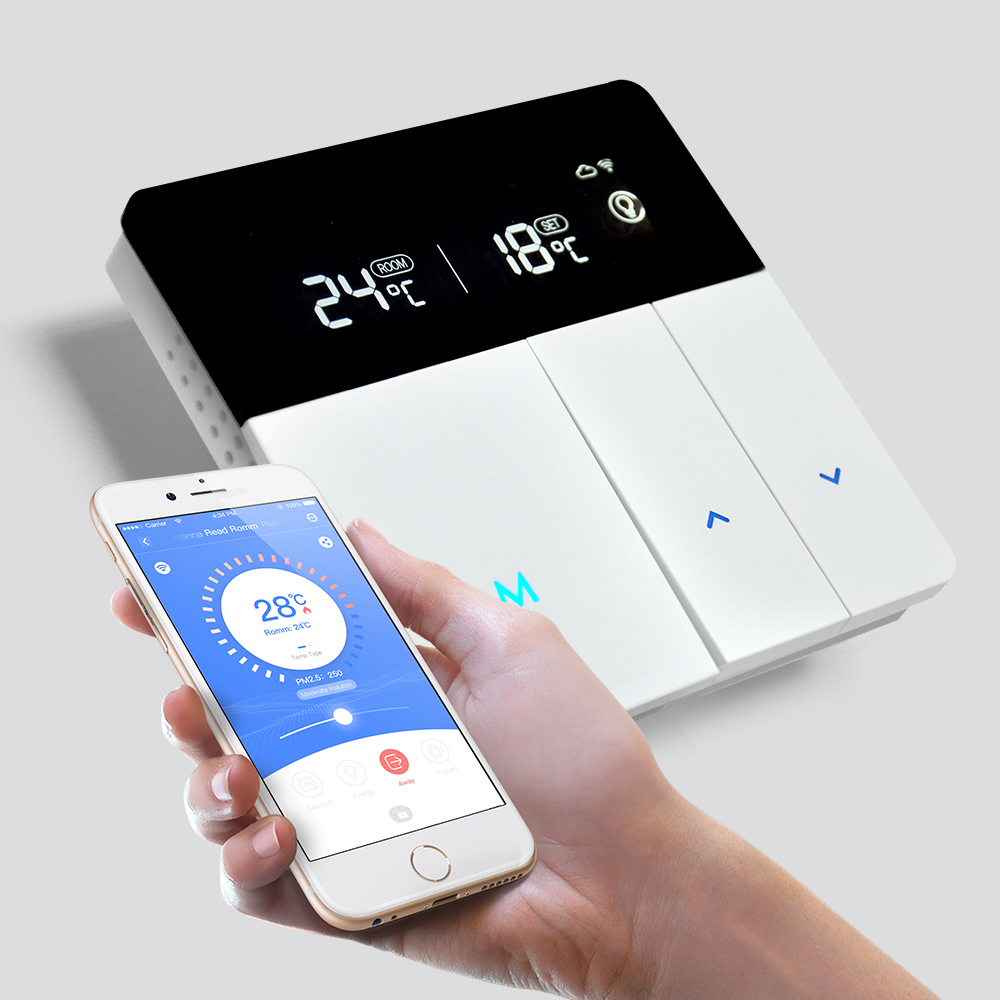

CONNECT TO THE INTERNET- a. Press “ <” for 3s, “ WIFI” will flash quickly
- b. APP enter the Add device page, select the type of product.
- c. Input the SSID and password, then pairing.
INSTALLATION- Environment
- Install to a 86*86 box, power by 220V AC
- Power off
- Before you install, must cut off the power

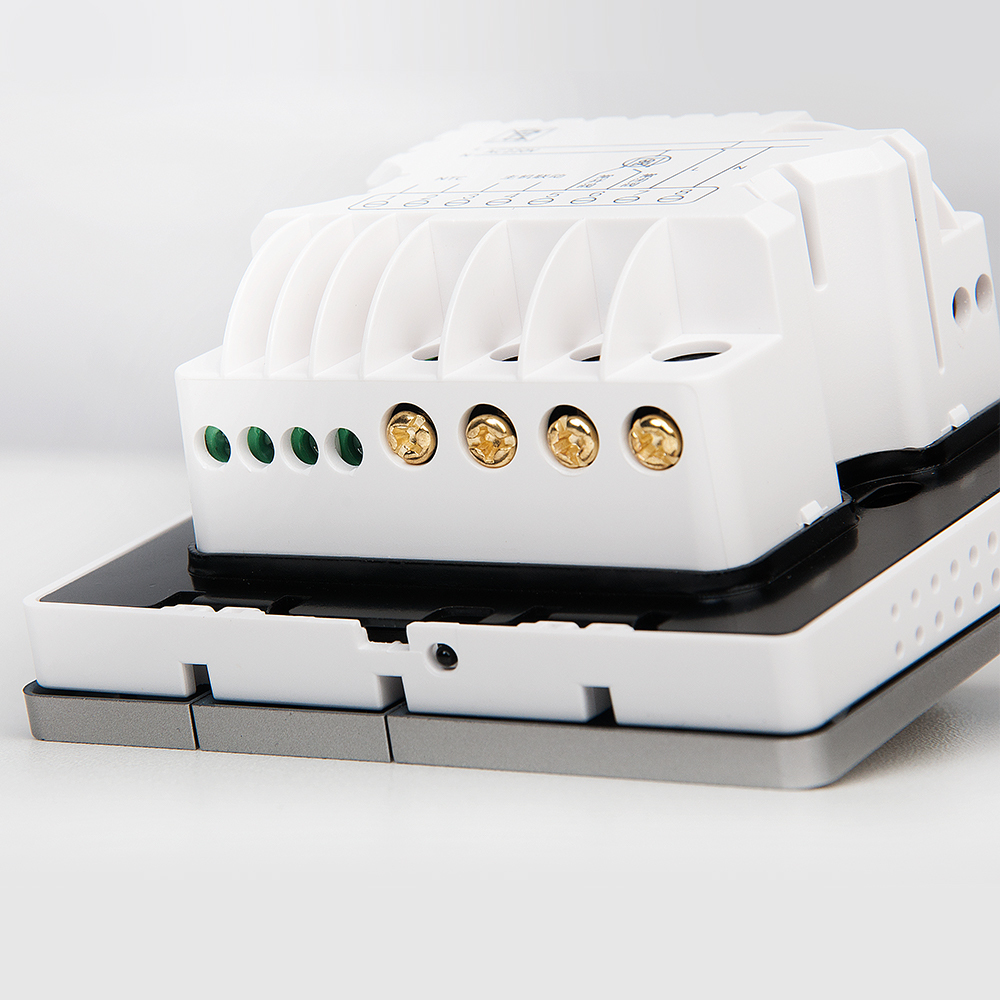

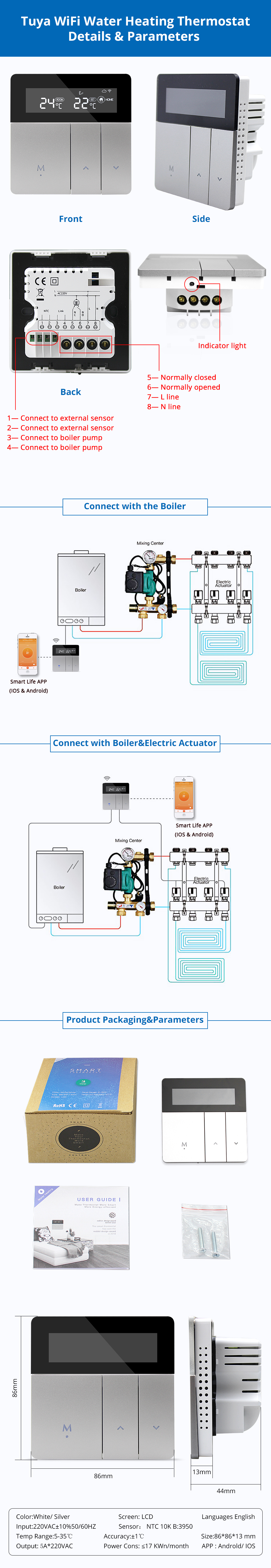

INSTALL STEPS- 1.Connect each wiring
- 2.Connect the steel to the 86 box
- 3.Buckle up the Power box and Panel
ADVANCED SETTINGSWhen the thermostat is power on,long press the “ <” and “> ”(5s) , press “ M” select the setting item, and press “< ” or “> ” to select .- 1.Sensor Type: 00: Internal 01: External 02: Internal&External. Default is 00
- 2 .High temp protection: 35~95℃, Default Is 95℃, “--” Cancel the Protection
- 3.LowTemp Protection：0~10℃, Default is 5℃, “--” Cancel the Protection
- 4.Swing: 0-9 ℃， Default 2 ℃
- 5.Temperature calibration ADJ ： -9℃~+9℃, Default is 0℃
- 6.Highest target temp:35~90℃, Default is 35℃
- 7.Lowest target temp:0~30 ℃, Default is 5℃
- 8.Home mode target temp:Default is 24℃
- 9.Eco mode target temp: Default is 18℃
- 10.Away mode target temp:Default is 15℃
- 11.System restart: Press “< ” or “> ” to Switch the “--” to “==” and Wait for 5s
- 12.Factory setting: Press “ <” or “> " to switch the "--" to "==" and Wait for 5s
-
GuideUser Manual Download
