HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Monitor

32933067660
Price:
USD
$94.92
$135.61
(30% OFF)
    Please select the information you wantX
Quantity:
-
+
(100 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • About Zemismart
  • About Payment
  • Contact
  • Reviews(30)
Specifications
·1/4'' 1 Mega pixel CMOS image sensor
·Low power consumption
·Ultra long standby
·Battery power supply
HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision






Remote wake-up

The doorbell will be in a sleep mode to save power; you can have a preview
in App and have a remote wake-up to monitor after 3-4 Seconds.
HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision(9)

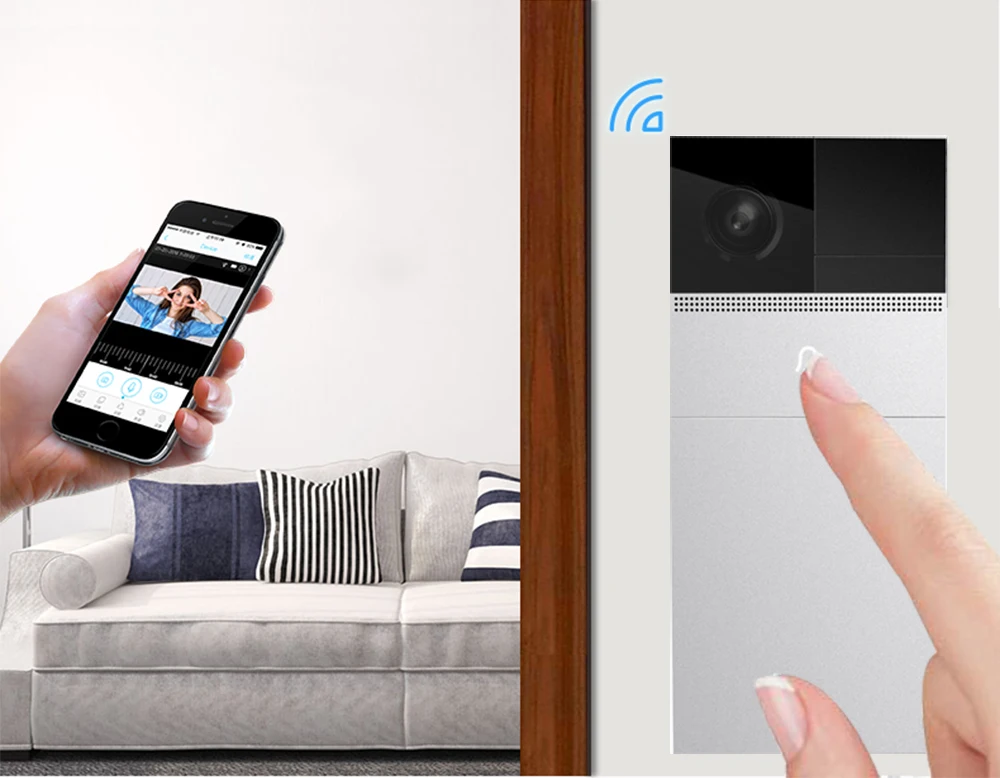

Full-duplex audio

When the visitor push the doorbell button, you will get a call. You can see
and hear the vistor in your App from the doorbell if you answer.

HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision(8)










PIR

When the doorbell detects someone stopping by, it sends an alarm message
to your cell phone.

HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision(10)










Battery Lock

After battery box connected ,it will be locked immediately. User have to unlock
the battery box in the App setting page to if want to take out the battery box,only
30 seconds allowed.

HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision(11)








Intallation

HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision(12)


Installation of Power supply mode
Warning:Don't fall down during using
Step 1:  Each input-cable (AC8~24V) connect to the wires which come out of the wall.
Step 2:  Remove the bottom cover and bracket of the doorbell host and lead the output terminal.Connect to the power interface on the back of the doorbell host.Note: red lead connects the power "+", white connects the power "-".
Step 3: Remove the double-sided adhesive on the back of the mylar sheet.Cover the position of the power interface on the back of the doorbell host.
Step 4:  Use the marker to draw the positions of the 4 screw holes on the wall surface to be installed.
Step 5:  Screw 4 expansion screws into the newly marked position.
Step 6:  Fix the mounting bracket to the wall.
Step 7:  Install the bottom door of the doorbell main unit and fix it with screws.
Step 8:  Pull the power cable from the center hole of the bracket and slowly insert the doorbell into the door as shown in the above figure (be careful not to catch your finger).

Install the device in battery-powered mode
Step 1:  Remove the doorbell bottom cover and bracket as shown in the figure.
Step 2:  Use the marker to draw 4 screw holes on the surface of the wall to be installed.
Step 3:  Screw 4 expansion screws into the newly marked position.
Step 4:  Fix the mounting bracket to the wall.
Step 5:  Snap the doorbell into the bracket.
Step 6:  Align the battery box with the bayonet lock, and push the battery box into doorbell.






Package Listing
HD WiFi Doorbell Build in Battery Home Security APP Control 1080P Visual Intercom Recording Video Door Phone Remote Home Monitoring Night Vision(13)
