Feature:

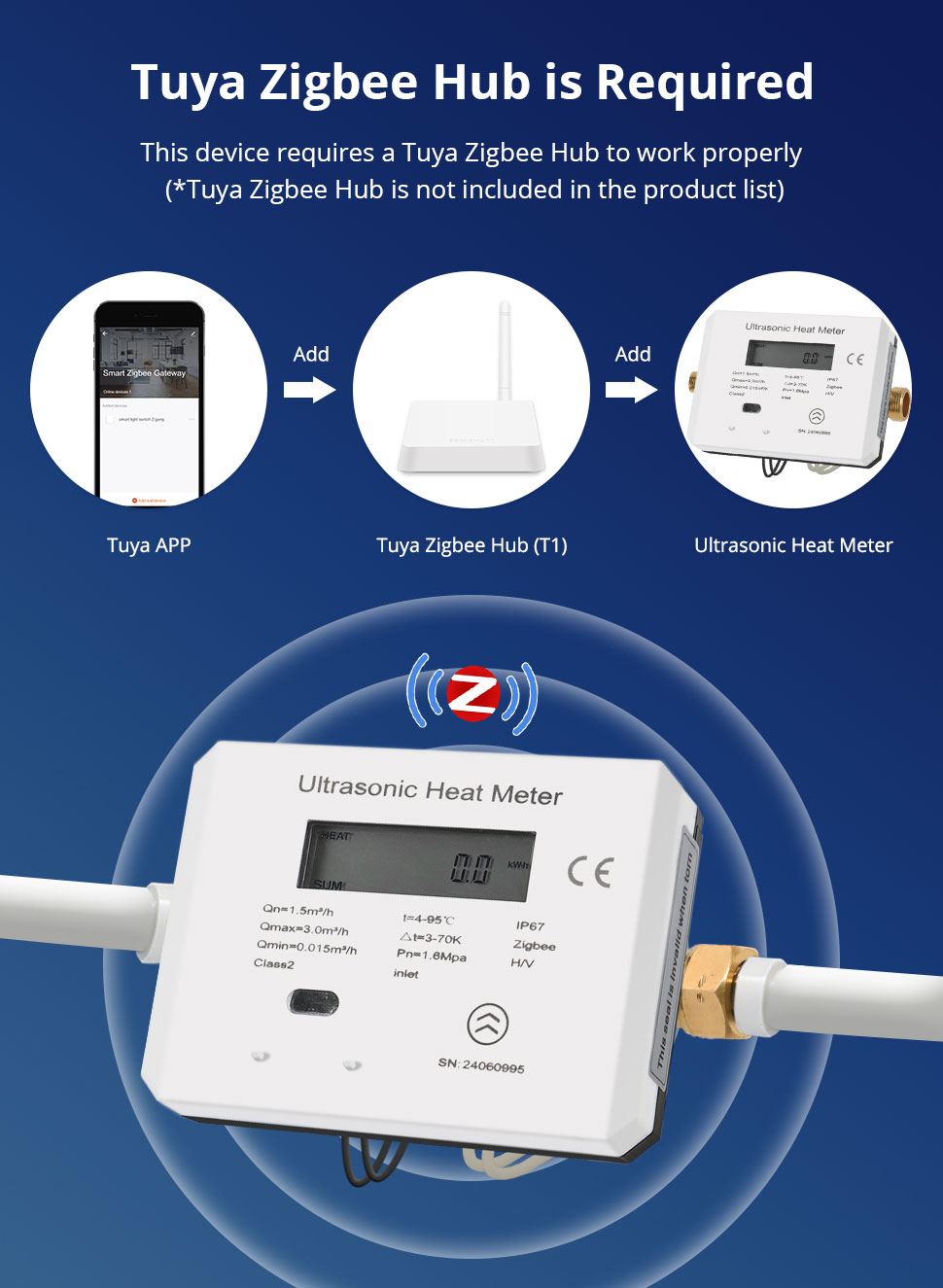

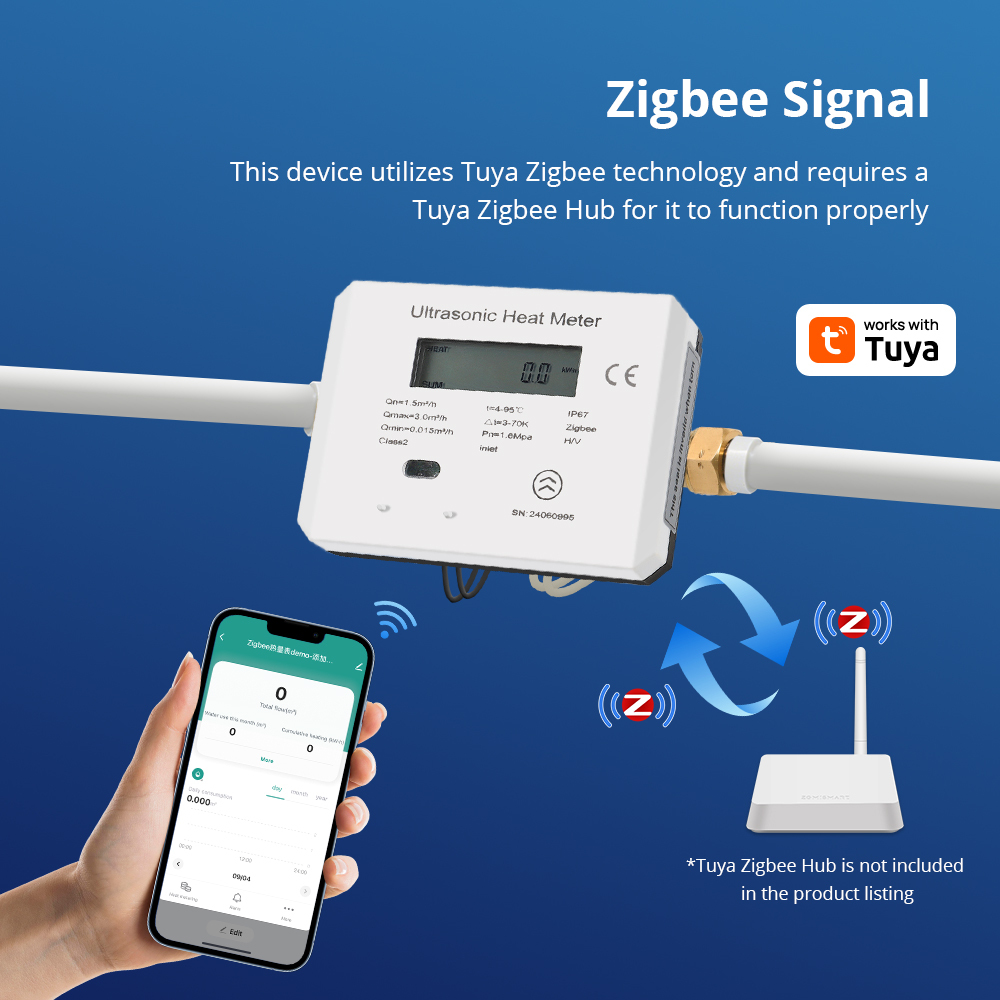

- Works with Tuya Zigbee Hub.

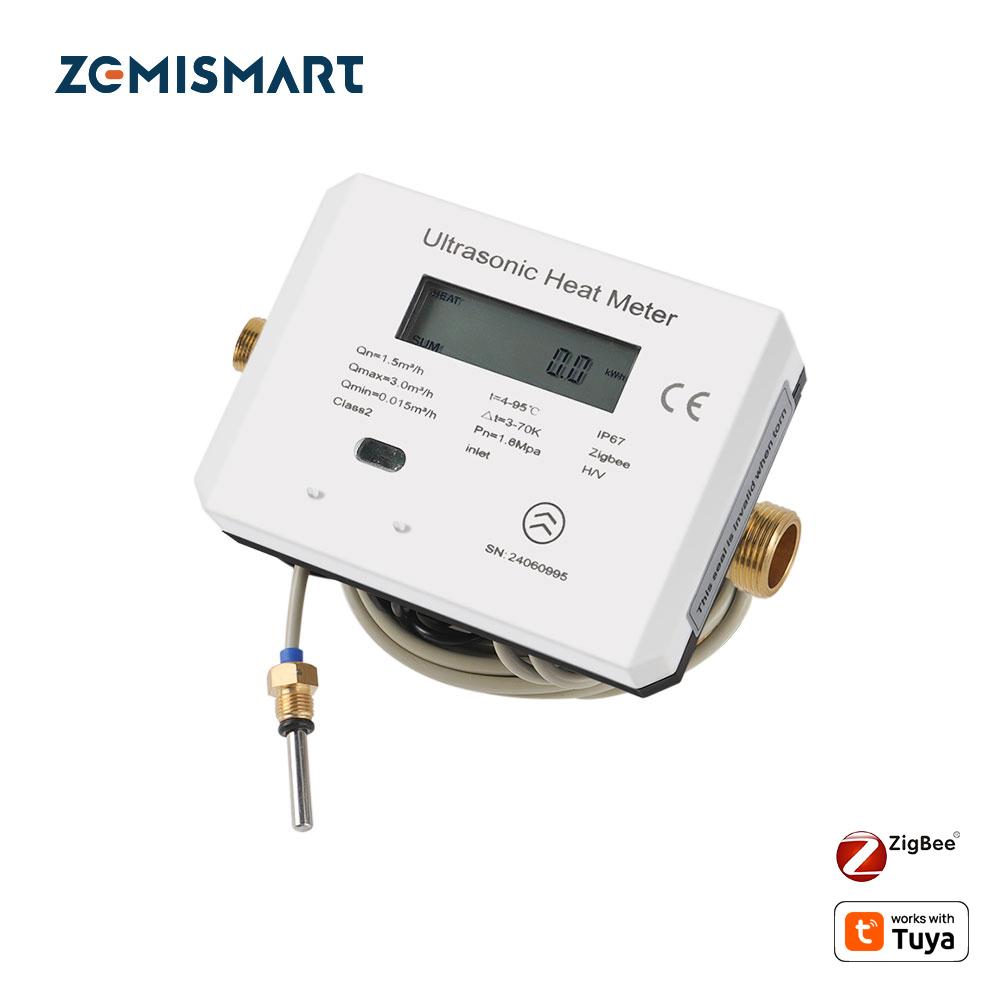

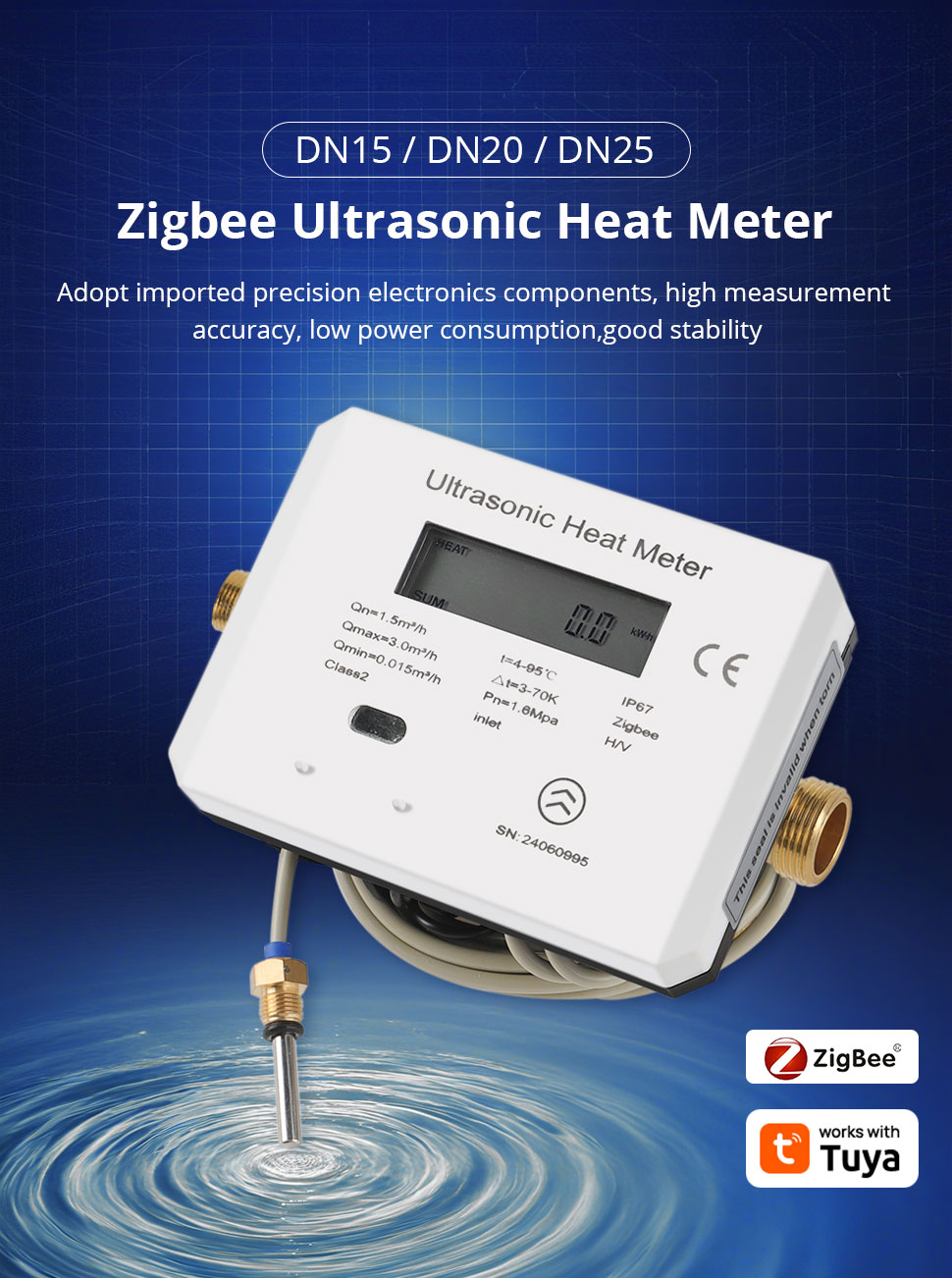

- Ultrasonic Heat Meter : Heat meter is one kind of meter which measure and display heat energy when water through the heat exchange system. When the water through the heat meter which installed in the heat exchange system, then meter's calculator calculates and display the release or absorption of heat energy according to flow quantity from the flow sensor and the temp. signal of Inlet and Return flow from matching temp. sensors, and the water flow through time.
- The Advantages Of Ultrasonic Heat Meter:
1. Adopt precision electronics components, high measurement accuracy, low power consumption,good stability.
2. No dirt deposited dead angle, no impurities by the medium, chemical material and the interference of magnetic materials, suitable for many country water quality.
3. Measurement mechanism has no moving parts, then never wear, long service life.
4. Minimal loss of pressure, to improve heating quality.
5. Using in wide range, both for cooling and heat.

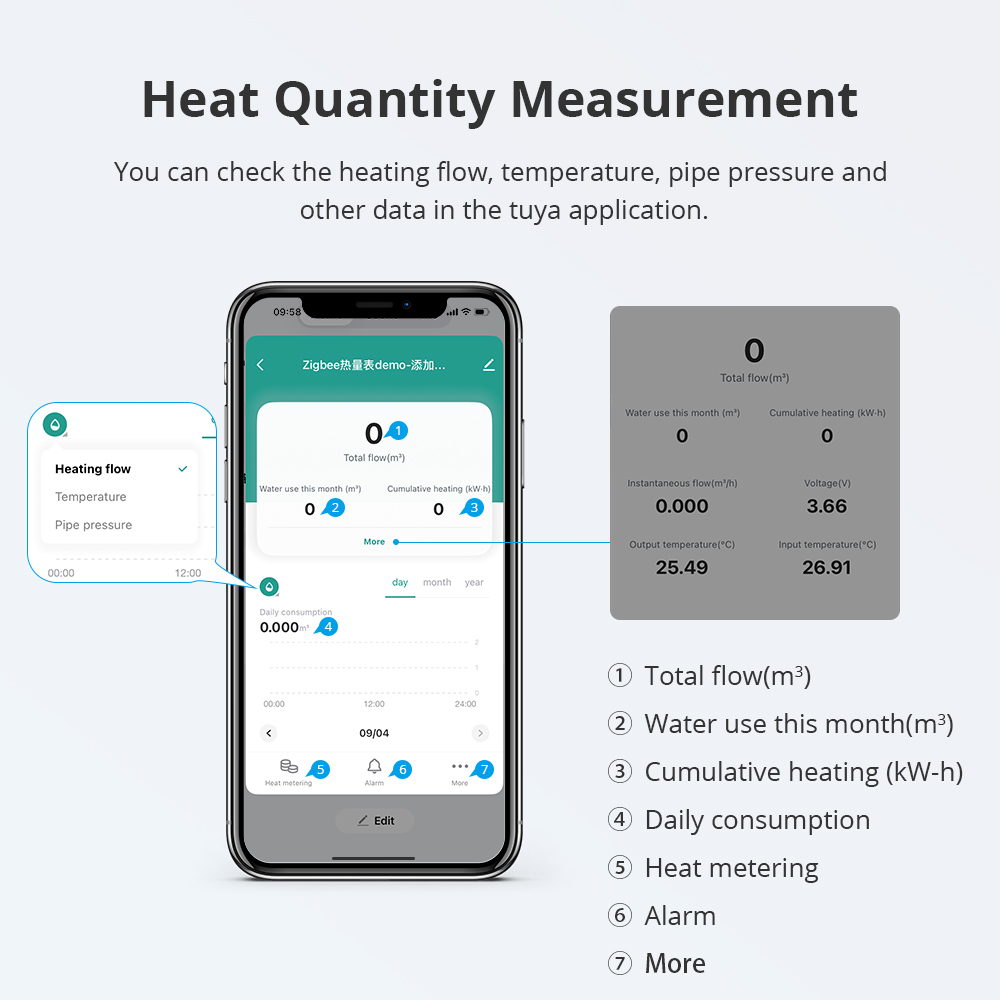

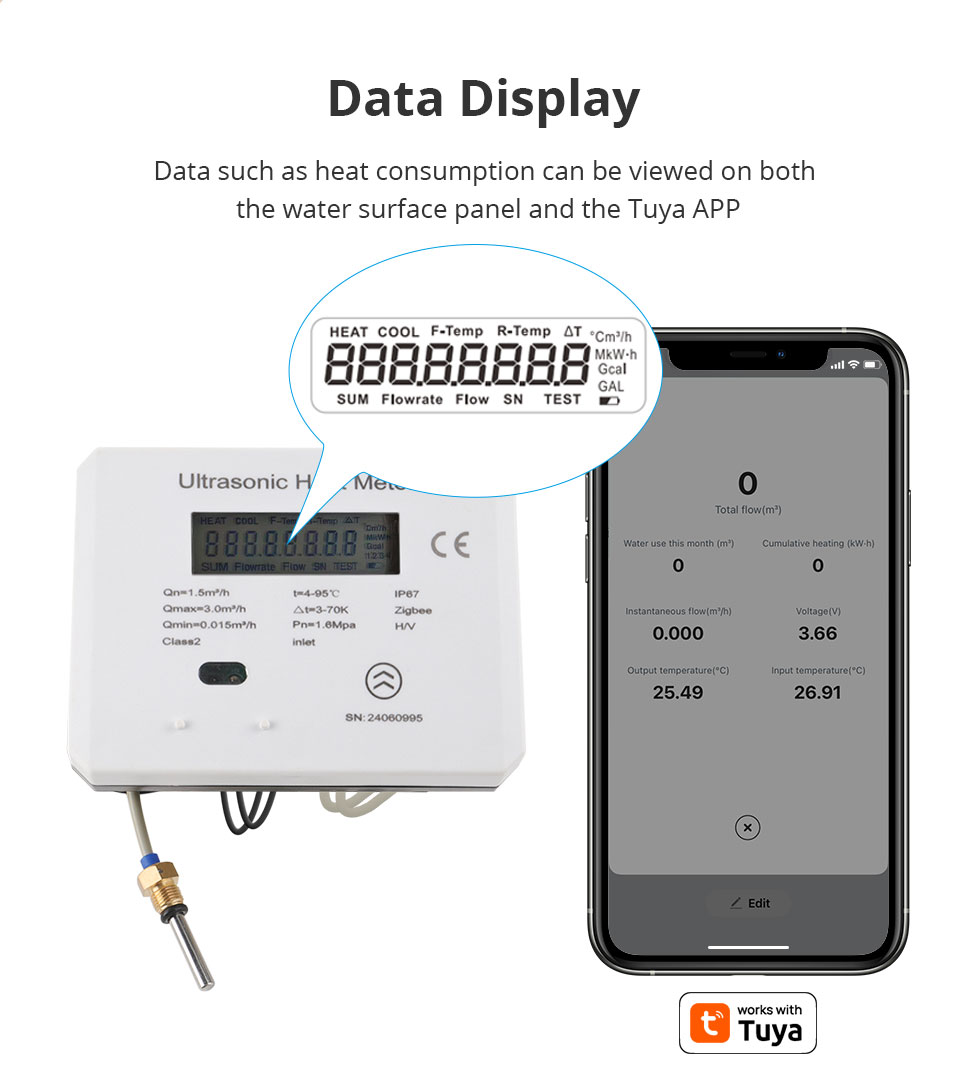

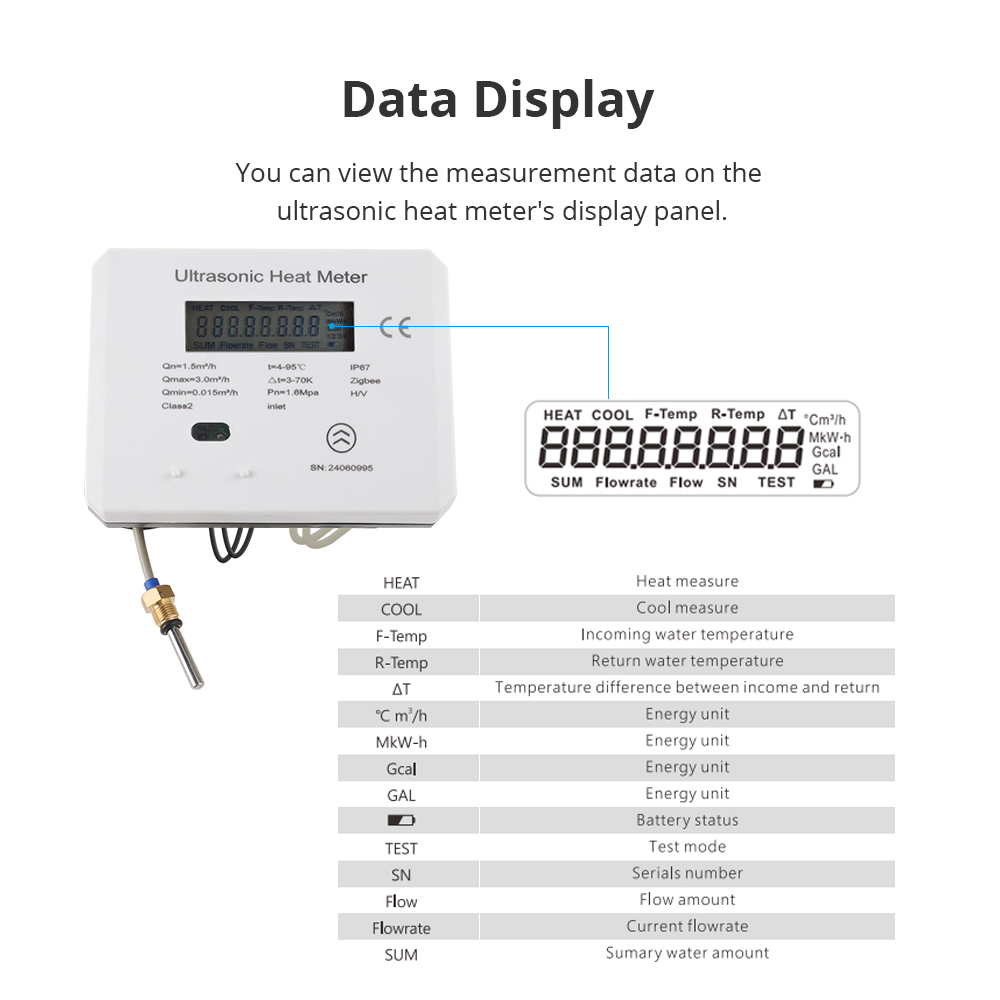

- Heat Quantity Measurement: Smart heat meters can accurately measure total flow, monthly water consumption, and cumulative heat energy. They also allow users to view consumption patterns across different time dimensions (daily, monthly, yearly), perform heat metering, and trigger alerts.

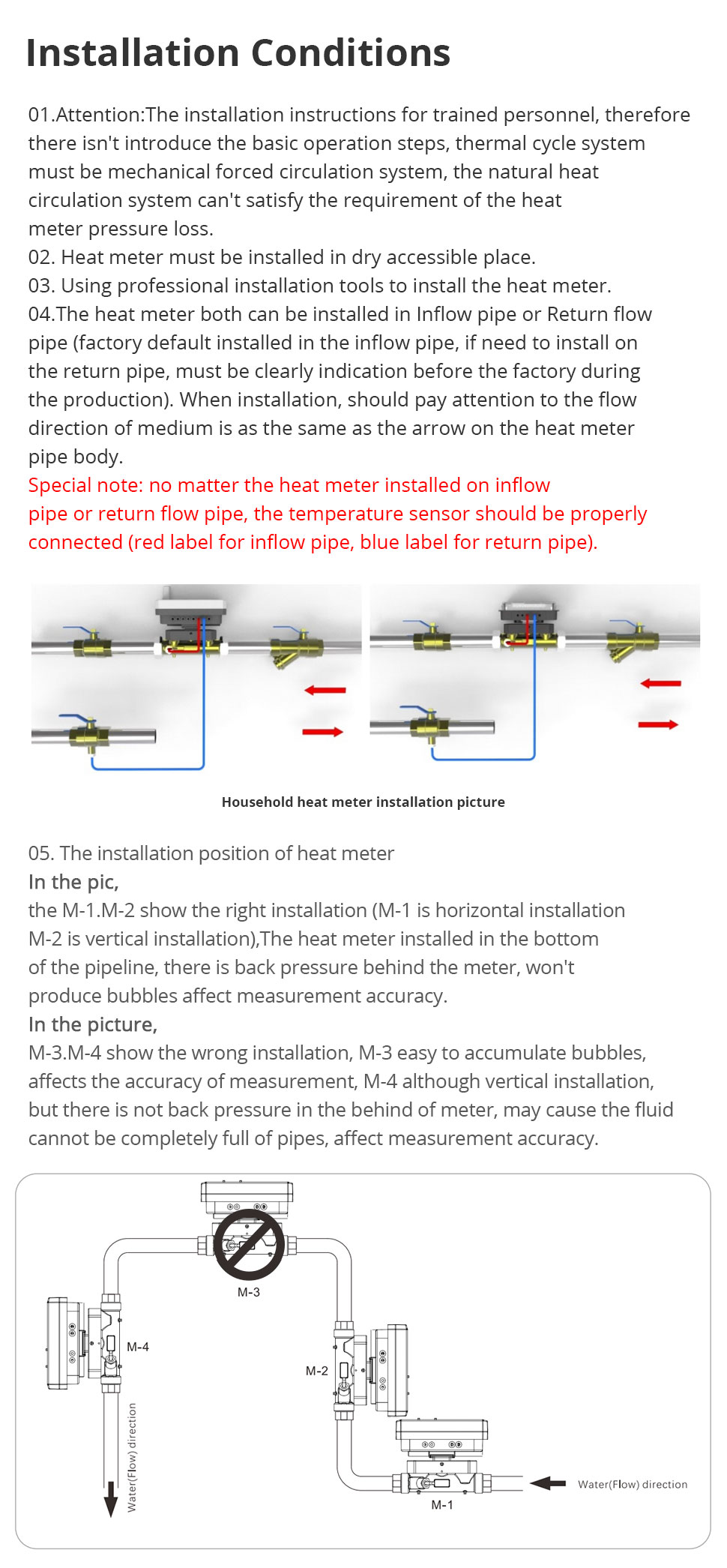

- Installation And Attentions:
1. Attention: thermal cycle system must be mechanical forced circulation system, the natural heat circulation system can't satisfy the requirement of the heat meter pressure loss.
2. Heat meter must be installed in dry accessible place.
3. Using professional installation tools to install the heat meter.
4. The heat meter both can be installed in Inflow pipe or Return flow pipe (factory default installed in the inflow pipe, if need to install on the return pipe, must be clearly indication before the factory during the production). When installation, should pay attention to the flow direction of medium is as the same as the arrow on the heat meter pipe body.
5. Special note: no matter the heat meter installed on inflow pipe or return flow pipe, the temperature sensor should be properly connected (red label for inflow pipe, blue label for return pipe).
6. For more information about installation, please refer to the instructions or contact the store customer service for details.
